Nozzle

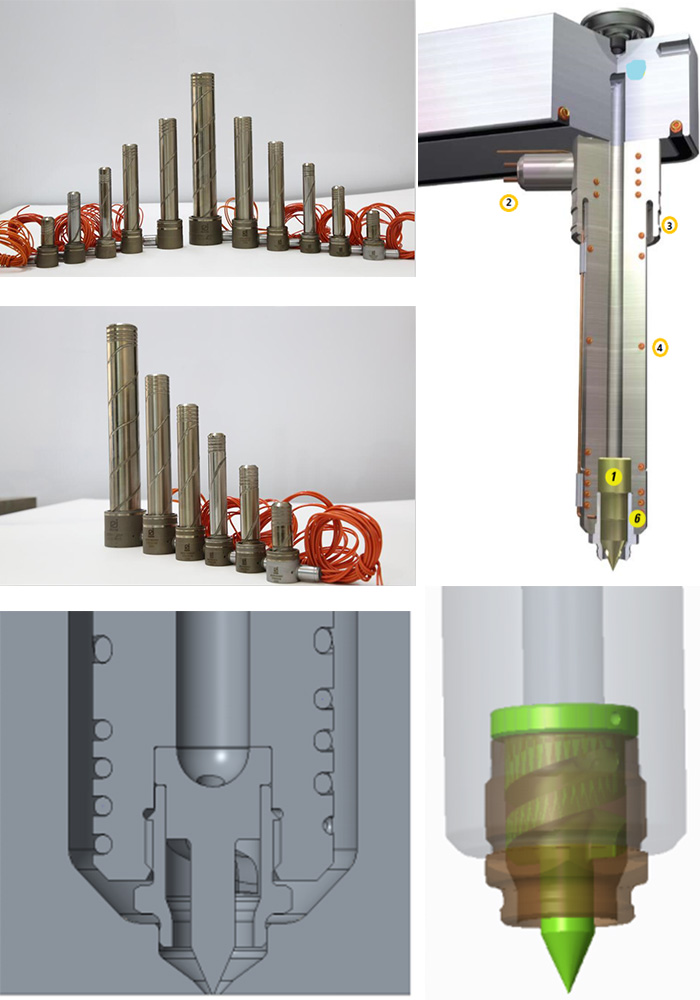

Flow-plas./ Max-Flow. The nozzles are available in 4 sizes, with a minimum nozzle diameter of 16mm and lengths ranging from 30mm to 300mm. There are more than 20 standard gates, including point gates, valve gates, and large nozzles. The variety of gate requirements for plastic parts; Flow-plas./ Max-Flow. The nozzle can withstand injection pressures up to 3000 Bar.

Unique Flange Design:

① Variety of special materials for different gate requirements

② The unique sealing structure can protect the end of the heating wire from moisture, corrosion, water and oil; heating element

③ Both the high pressure of the nozzle and the heat loss of the nozzle can be prevented.

④ The embedded type and welding sealing process ensure uniform nozzle temperature and various nozzle tip structures.

Nozzle Model Selection:

Select the appropriate nozzle series based on the weight of the product. If multiple nozzles are used simultaneously during injection molding, select the appropriate nozzle size based on the amount of glue that each nozzle needs to meet.

Nozzle Model Selection

Nozzle Series	Product Size	Injection Amount / Nozzle	Flow Path Diameter (mm)
Nozzle Series	Product Size	Injection Amount / Nozzle	Open	Valve Type
PZCB	小	<50g	6	8
PZDB	中	50-200g	8	11
PZHB	大	>200g	12	16

Gate Form

Flow-plas./ Max-Flow. Available in 3 gate types - point gate, large nozzle, valve gate, will meet your hot runner system requirements.

The following two points must be considered when choosing a casting method:

1. Requirements for the appearance of the gate

2. Types of injection molding materials (crystalline or amorphous)

The nozzle models corresponding to various gate forms are summarized:

	PZCB	PZDB	PZHB
Pointed Gate
E-type cusp gate (ET)	√	√	√
Extended E-tip point gate (EET)	√
F-type cusp gate (FT)	√	√	√
Extended F-type cusp gate (EFT)		√	√
Dashuikou
Type C large nozzle (CS)		√	√
Bimetal C-type large nozzle (BCS)	√	√	√
Straight-through large nozzle (HS)	√	√	√
Extended straight-through large nozzle (EHS)	√	√	√
Valve Gate
Type C valve gate (CV)
Bimetal C-valve gate (BCV)	√	√	√
Straight-through valve gate (HV)	√	√	√
Extended straight-through valve gate (EHV)	√	√
